Hd Seamless Splicing P2.6P2.97P3.91 Indoor Outdoor LED Stage Display Screen Panel
उत्पाद विवरण:
| Place of Origin: | Guangdong, China |
| ब्रांड नाम: | King VisionLed/oem/odm |
| प्रमाणन: | CE, ROHS, ISO 9001, UL |
| Model Number: | P3.91 P4.81 |
भुगतान & नौवहन नियमों:
| Minimum Order Quantity: | 8 Square Meters |
|---|---|
| मूल्य: | $780.00/Square Meters 8-49 Square Meters |
| Packaging Details: | Flight case:530mmx650mmx1000mm, 6 pcs panels or 8 pcs panels packed in 1 flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 1000 Square Meter/Square Meters per Month |
|
विस्तार जानकारी |
|||
| Application: | Outdoor building / gymnasium / real estate/ | Name: | LED Stage Backdrop Screen |
|---|---|---|---|
| Working Environment: | indoor/outdoor | Vertical Viewing Angle(Deg): | 160/160 |
| Support Input: | Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI | Refresh Rate(Hz): | 3840hz |
उत्पाद विवरण
FEATURES

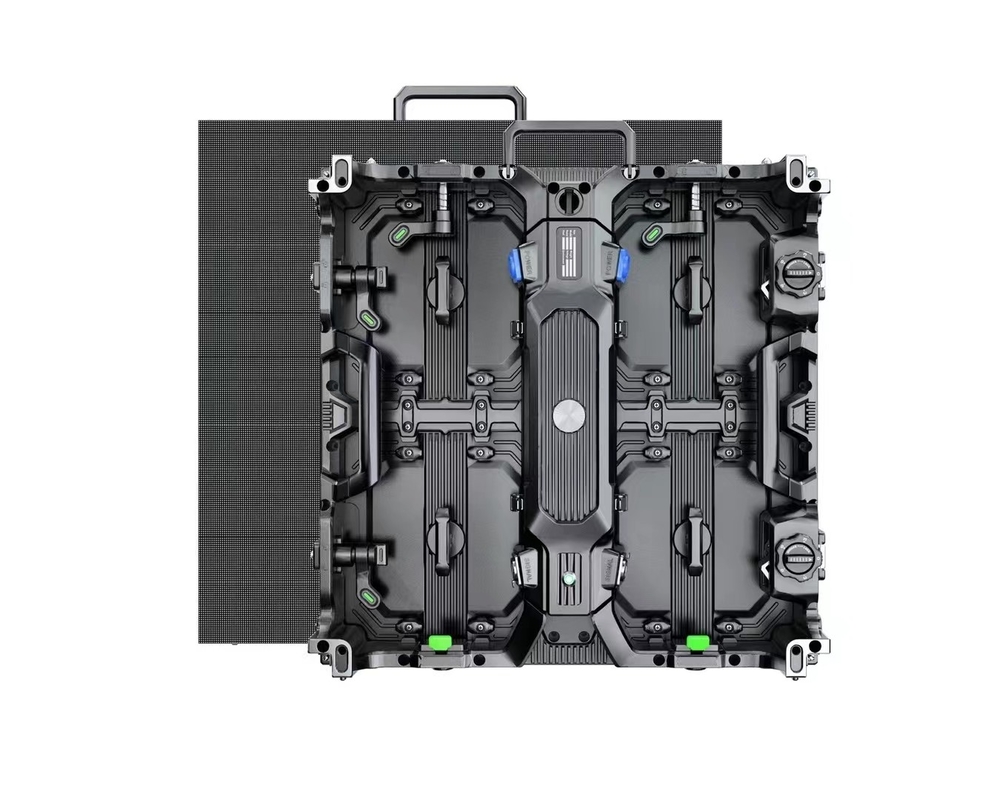

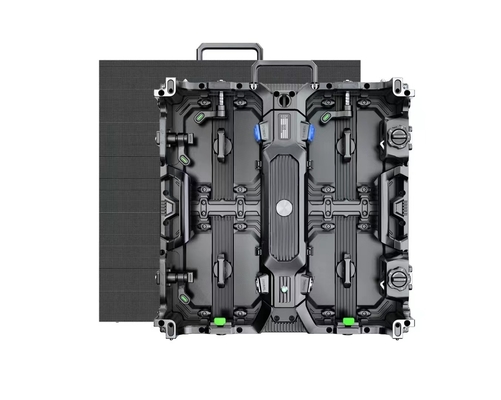

1. High precision die-cast aluminum cabinet, ultra-thin and light weight, 500x1000 ≤ 13KG/cabinet, with a thickness of only 90mm;

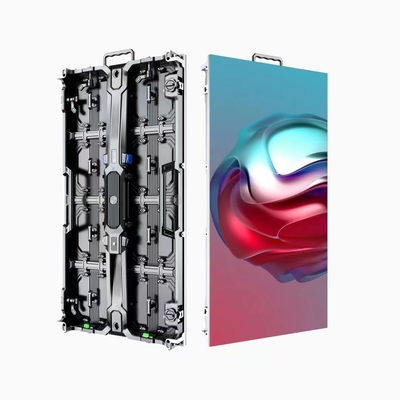

2. 500X500/500X1000mm cabinets can be mixed and assembled to create a variety of shapes;
3.Both the 500x500mm and 500x1000mm cabinets use a minimalist mini control box of the same model and can be shared,Saving installation and calibrating time;
4. Optional curved lock, capable of splicing large screens with ± 0-6 ° inner arc, outer arc, 90°corner, etc;
5. The modular button lock design allows for fast assembly, disassembly and maintenance within 5 seconds;
6. Optional magnetic module can achieve complete assembly, disassembly and maintenance of the module and power supply front the front.
7. Work in silence: no fan, noise ≤ 40DB; Not affecting the on-site audio-visual effect;
8. Point by point calibration: White balance point by point calibration to ensure consistency and uniformity of the display;
9. Background large screen optimization plan; High refresh, SLR, camera 1/3000S shutter capture, no flicker, no ghost scanning line;
10.Indoor and outdoor universal pixel pitches with P1.9/2.6/2.9/3.9 ets; Specialized in providing overall LED display solutions for events, conferences, stage, product launches and real estate.
| Model | P2.6-IN | P2.9-IN | P3.9-IN | P3.9-OD | P4.8-OD |
| Pixel Pitch | 2.6 | 2.9 | 3.9 | 3.91 | 4.81 |
| Pixel Density(dot/m2) | 147,456 | 112896 | 65536 | 65536 | 43264 |
| LED Type | SMD2121 | SMD2121 | SMD2121 | SMD1921 | SMD1921 |
| Module Size(mm*mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size(mm*mm*mm) | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 | 500*500*73 |
| Cabinet Weight(±0.25kg) | 500*1000*73 | 500*1000*73 | 500*1000*73 | 500*1000*73 | 500*1000*73 |
| Cabinet Resolution(px*px) | 192*192 | 168*168 | 128*128 | 128*128/128*256 | 104*104/104*208 |
| Module Resolution(px*px) | 96*96 | 86*86 | 64*64 | 64*64 | 52*52 |
| Vertical Viewing Angle(Deg) | H160/V120 | H160/V120 | H160/V120 | H160/V120 | H160/V120 |
| Brightness(cd/m2) | 1000 | 1000 | 1000 | 4500 | 4500 |
| Gray Scale(bit) | 16 | 16 | 16 | 16 | 16 |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max Power Consumption(W/sqm) | 400 | 400 | 400 | 700 | 700 |
| Average Power Consumption(W/sqm) | 120 | 120 | 120 | 210 | 210 |
| Input Voltage(V) | AC 100-240 | AC 100-240 | AC 100-240 | AC 100-240 | AC 100-240 |
| Ingress Protection | IP43 | IP43 | IP43 | IP65 | IP65 |
| Working Environment | Indoor | Indoor | Indoor | Outdoor | Outdoor |
FAQ
Q1: What is your products packing?
A1: We provide 3 kinds of packing case: carton paper case, plywood packing case and flight packing case. Carton paper case for led module. Wooden packing case for fixed installation cabinet. Flight packing case for rental cabinet.
Q2: What about a cheaper price?
A2: As you know we are a factory, so the price we offer you is reasonable, and we must make sure good quality. You can compare the price to other suppliers if in all the same product, but if your quantity is large indeed, we can also consider very less profit for your long time cooperation with us to make co-win.
Q3: Do you provide onsite assistance?
A3: Yes, our trained professional is available during your event to install, dismantle and support.
4. WHAT IS THE PAYMENT TERMS?
30% deposit by TT, 70% balance before shipment.
